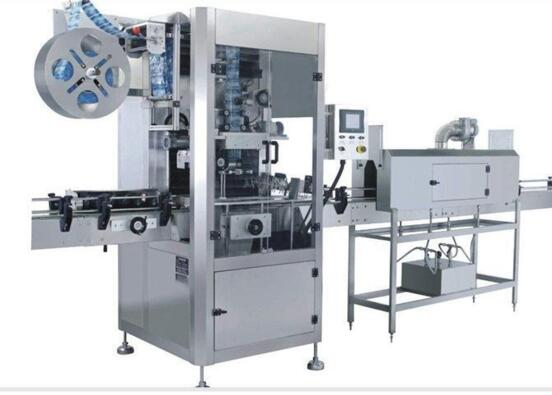

Shrink Sleeve Applicator

Robust stainless steel and anodized aluminum construction. Safety guard provides the operator protection during labeling. HMI Touch screen ensure user-friendly operation.Cutting assembly equipped with servo motor for high accuracy. Easy to operate settings and easy product changeovers. Options Integrated conveyor. Electric or Steam heat tunnels Double Mendel.

Specification
Equipment Model : TR-SRNKAP 2-12000
Output Speed: 100-250 bottles per minute
Bottle Diameter Range: 28-125 mm
Sleeve Length Range: 30-250mm
Label Thickness Range: 0.03-0.13mm
Core Inner Diameter: 5”-10”
(Free adjustment) Material: PVC, PET, OPS
Power supply: AC220v/50Hz or Optional
Power Consumption: 3kw
Machine Dimension (L×W×H): 2100×850×2000mm
Machine Weight: 400kg
